Monday 21 December 2020

DMR repeater for Cork City







A new 70cms DMR repeater was installed at Farmer's Cross near Cork city on Monday December 21st to provide DMR coverage to Cork City and surrounding areas. The set up consists of a Motorola DR-3000 repeater and the antenna is a CAT-C440 @ approx 50ft. It's the fourth digital repeater set up by the Southern Ireland Repeater Group will complement our other three digital installations located at West Waterford, Waterford City and Mt. Leinster.



Details are as follows:

Callsign:   EI7FXD
DMR ID:   272015
Mode of Operation:   DMR Only
Location:   Farmer's Cross, Cork City
Locator:   IO51SU
Output:  430.250MHz
Input:  439.250MHz
Shift:  +9.0MHz
Access:    Colour Code 1


On site for the installation were Neil EI3JE and John EI8JA. Thanks to Anthony O’Sullivan and his colleague John who put the antenna up for us in not so nice weather conditions and to John EI8IR (Airwave Internet) for the Broadband connection.
This repeater is a joint venture between Southern Ireland Repeater Group and local DMR enthusiasts in the Cork City area.
Many thanks for their contributions towards the project to Don EI8DJ and Willie EI7CGB.

Sunday 11 October 2020








Our digital repeater EI7WCD which was relocated to Carrickphierish in Waterford city as part of the recent site upgrade is now up and running following the approval of the recently applied for frequency change. The change was necessary to allow both the analogue and digital repeater share the same site. 430.275 +9 MHz replaces the old frequency of 439.675 -9 MHz. EI7WCD is a multimode MMDVM repeater and is DMR, DStar, YSF and analogue enabled covering Waterford City, South Kilkenny and the Suir Valley areas.

(DVU-R22 - input 439.275 MHz, output 430.275 MHz, 103.5Hz tone on TX & RX for analogue operation)

The system consists of a Motorola MTR2000 repeater running at 25watts interfaced with an MMDVM using a Raspberry Pi computer. The antenna is an omnidirectional vertical (5dbd) fed with Andrews LDF4-50 cable at 15m.

More info on our digital repeaters can be found on the Digital Network page.

Reports as always to:    sirnrepeaters@gmail.com



.

Monday 31 August 2020


Major upgrade work was carried out to our 70cm repeater EI7WDR on 433.275 at Carrickphierish in Waterford city on Saturday August 29th. All equipment including antennas and cables were replaced. The Motorola MC Compact repeater which had been in service on the site since 2004 was replaced with a Motorola MTR2000 which has a higher power output than the previous unit. The antennas were replaced with two Diamond SE-50s and the feeder cable upgraded to Andrews Heliax LDF4-50. A Sinclair Q3220E duplexer replaced the old one which allowed the repeater use one antenna for TX and RX freeing up the second antenna for use with the EI7WCD digital repeater which was also installed on the site as part of the upgrade work. On site were Francis EI9KT, Gareth EI7FZB, Nicky EI3JB, Neil EI3JE and John EI8JA.

The work carried out should greatly improve the repeater's coverage and users should note that the EI7WDR repeater on 433.275 now requires a CTCSS tone of 103.5 to access it.

Signal reports would be appreciated and can be emailed to: sirnrepeaters@gmail.com.




New Installation




Installation Crew
Installation Crew (L to R Gareth EI7FZB, Neil EI3JE, John EI8JA, Nicky EI3JB & Francis EI9KT)

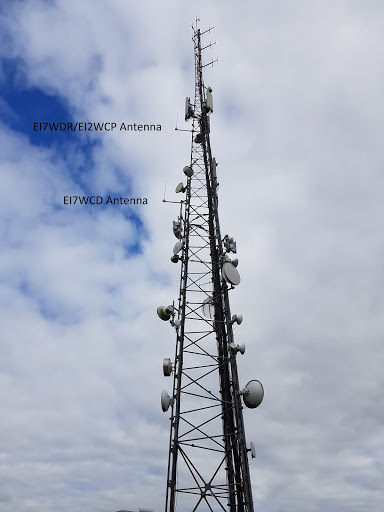

New Antennas
